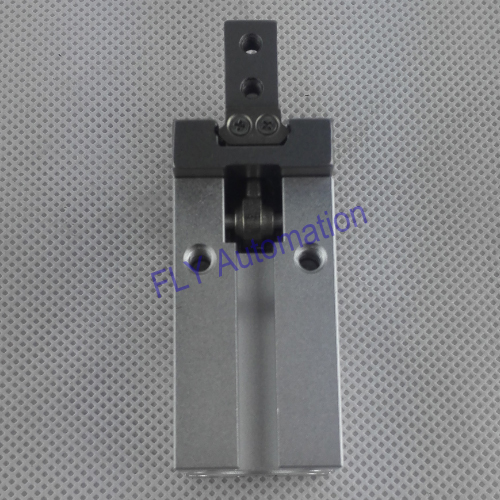

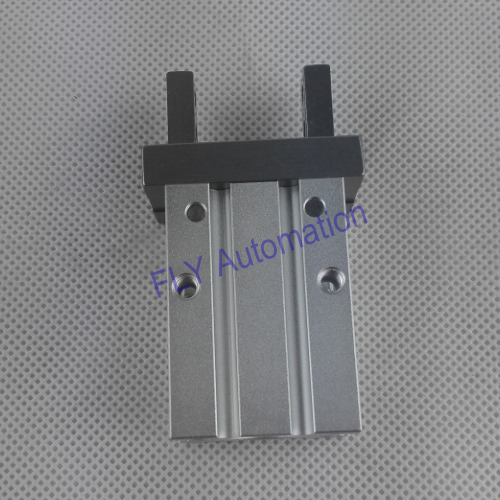

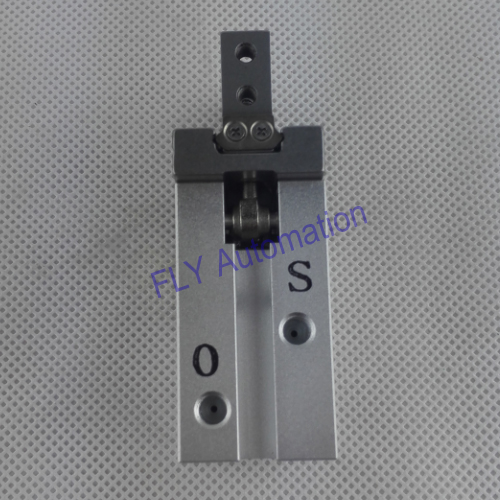

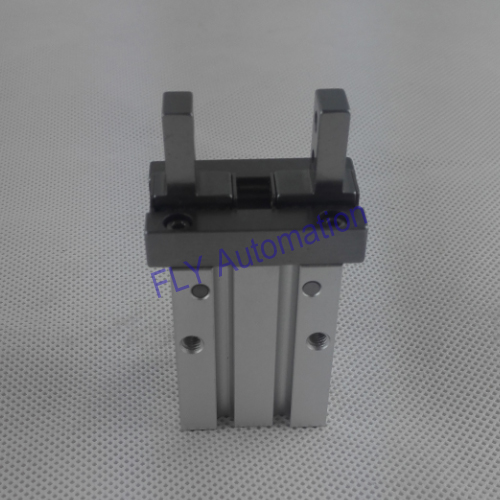

Finger Cylinder MHZ2 Series Parallel Type Air Gripper MHZ2-20D 2 Fingers 20 Mm Bore

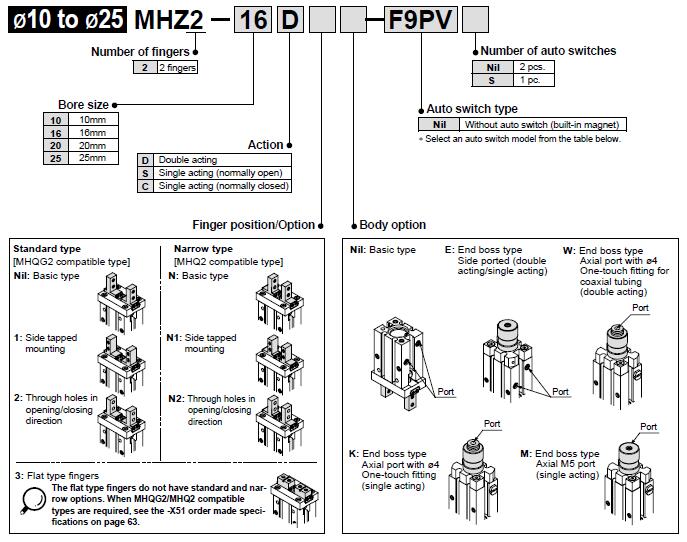

Ordering Code: MHZ2-20D, Any other types please contact freely.
Order code
Specifications
Operating
pressure | Double acting | Φ6: 0.15 to 0.7MPa
Φ10: 0.2 to 0.7MPa
Φ6 to Φ40: 0.1 to 0.7MPa |
| Single acting | Normally open | Φ6: 0.3 to 0.7MPa
Φ10: 0.35 to 0.7MPa
Φ6 to Φ40: 0.25 to 0.7MPa |
| Normally closed |
| Ambient and fluid temperature | –10 to 60 °C |
| Repeatability | Φ6 to Φ25: ±0.01mm |
| Φ32 to Φ40: ±0.02mm |
| Maximum operating frequency | Φ6 to Φ25: 180c.p.m. |
| Φ32 to Φ40: 60c.p.m. |
| Lubrication | Non-lube |
| Action | Double acting, Single acting |
| Auto switch (option) Note) | Solid state switch (3 wire, 2 wire) |
| Note) Refer to pages 48 through 60 for details regarding auto switch specifications. |
Models
| Action | Model | Bore
size
(mm) | Gripping force ① | Opening/
Closing
stroke
(both sides)
mm | Weightg |
| Gripping force per finger Effective value N |
External
gripping force | Internal
gripping force |
| Double acting | MHZ2-6D | 6 | 3.3 | 6.1 | 4 | 27 |
| MHZ2-10D(N) | 10 | 11 | 17 | 4 | 55 |
| MHZ2-16D(N) | 16 | 34 | 45 | 6 | 115 |
| MHZ2-20D(N) | 20 | 42 | 66 | 10 | 235 |
| MHZ2-25D(N) | 25 | 65 | 104 | 14 | 430 |
| MHZ2-32D | 32 | 158 | 193 | 22 | 715 |
| MHZ2-40D | 40 | 254 | 318 | 30 | 1275 |
Single
acting | Normally open | MHZ2-6S | 6 | 1.9 | _ | 4 | 27 |
| MHZ2-10S(N) | 10 | 7.1 | 4 | 55 |
| MHZ2-16S(N) | 16 | 27 | 6 | 115 |
| MHZ2-20S(N) | 20 | 33 | 10 | 240 |
| MHZ2-25D(N) | 25 | 45 | 14 | 435 |
| MHZ2-32S | 32 | 131 | 22 | 760 |
| MHZ2-40S | 40 | 217 | 30 | 1370 |
| Normally closed | MHZ2-6C | 6 | _ | 3.7 | 4 | 27 |
| MHZ2-10C(N) | 10 | 13 | 4 | 55 |
| MHZ2-16C(N) | 16 | 38 | 6 | 115 |
| MHZ2-20C(N) | 20 | 57 | 10 | 240 |
| MHZ2-25C(N) | 25 | 83 | 14 | 430 |
| MHZ2-32C | 32 | 161 | 22 | 760 |
| MHZ2-40C | 40 | 267 | 30 | 1370 |
| Note 1) Values based on pressure of 0.5MPa, gripping point L = 20mm, at center of stroke. |
| Note 2) Values excluding weight of auto switch. | | | |

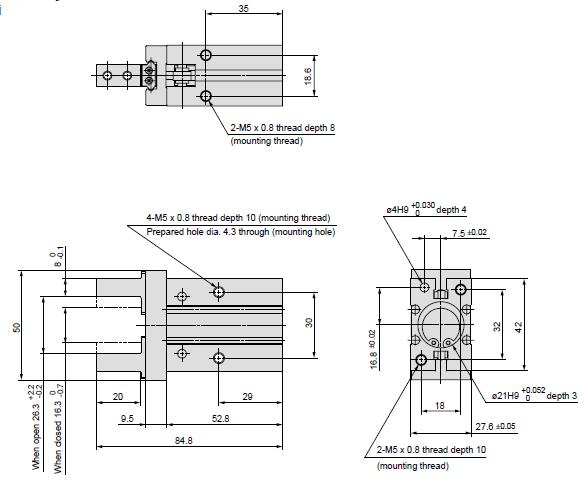

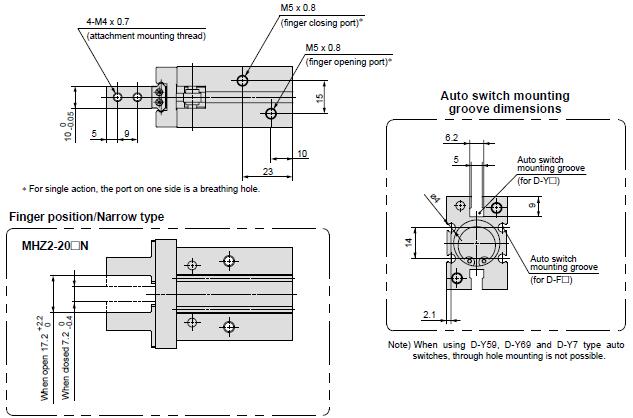

Structures
